EXPOTECH 4+1 POE Switch POE ÇOKLAYICI POE Switch TEN GELEN 1POE 4 COKLAYICI ELEKTİRİK OLMADAN 100/1000mbps POE 4+1
Stok Kodu : | EX-SW1004G-OUT |
Stok Durumu : | 4 Stokta var! |
Marka : | EXPOTECH |
Derece : | 0 |
Yorumlar : | 0 Adet |
Fiyat : | 26,40 USD + KDV |
EXPOTECH 4+1 POE Switch POE ÇOKLAYICI POE Switch TEN GELEN 1POE 4 COKLAYICI ELEKTİRİK OLMADAN 100/1000mbps POE 4+1 | |
Port Sayısı | 4+1 port |
Transfer Hızı | 10/100/1000 |
POE Desteği | Var |
SFP Port | Yok |
Yönetim | Yönetilemez |
Rackmount | Yok |
MARKA | OEM |

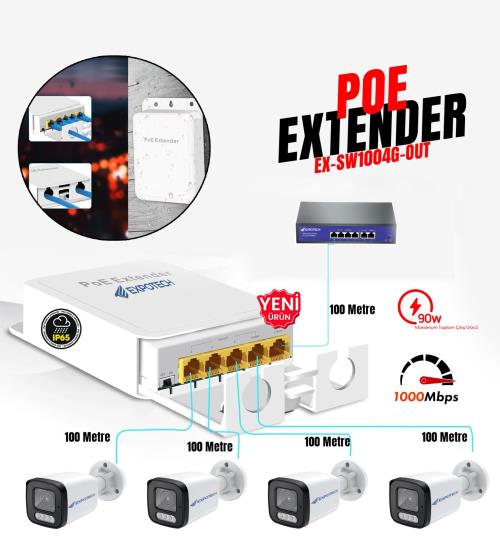

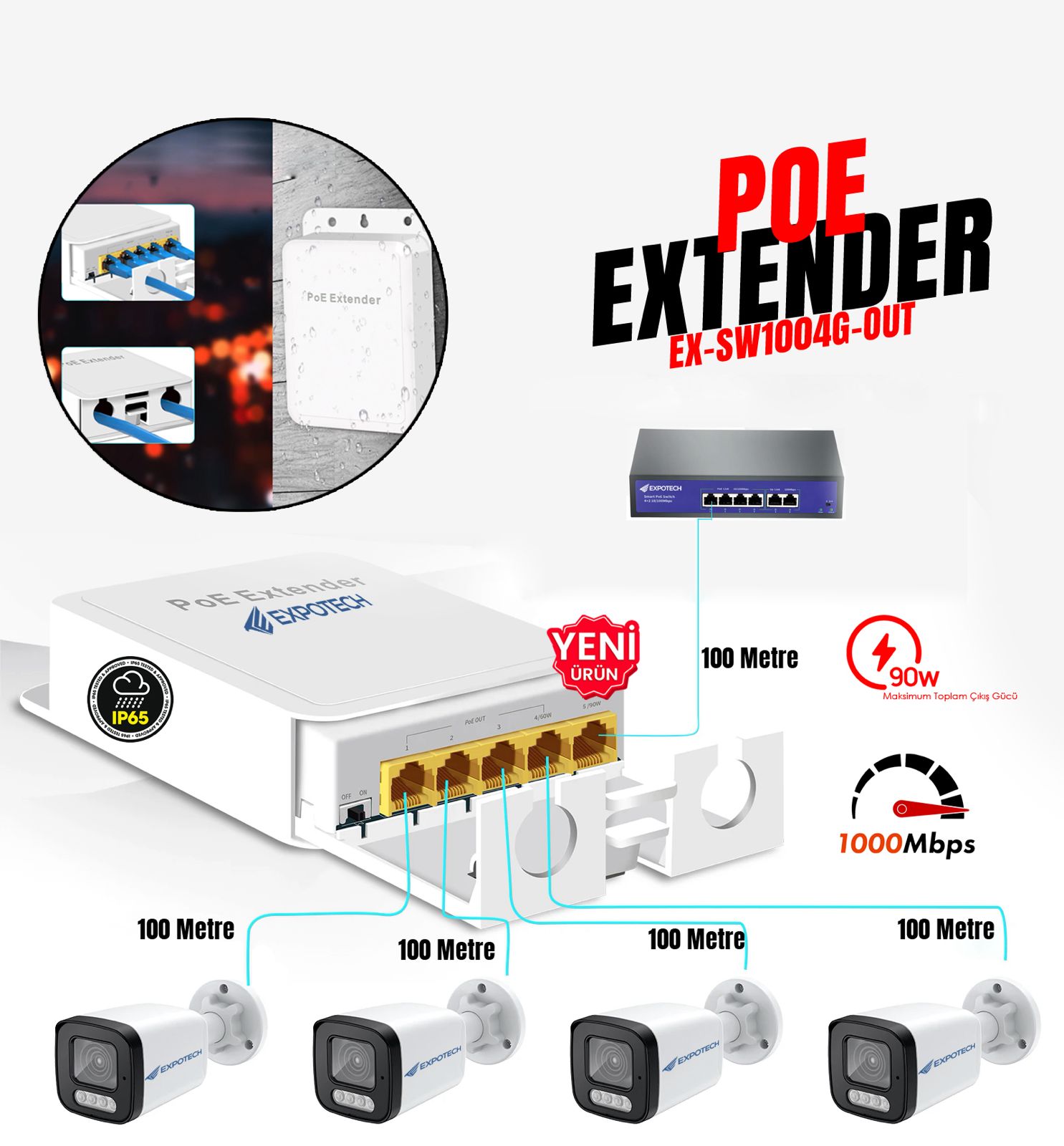

4POE Output+1POE input 100m Distance
POE Extender
-
1 * IEEE802.3af/at/bt(PoE/90w) input
-
1 * IEEE802.3af/at/bt(PoE/60w) output
-
3 * IEEE802.3af/at(PoE) output
-
Vlan,
Application:
-
Wireless Access Point
-
IP Camera
-
IP Phone
-
Computer Networks
Product |
10/100/1000mbps POE Extender |
Model |
KAT-BT14GW-A |
POE Port |
IEEE 802.3af/at/bt |
Output Power |
1-3 port max 30W,4 port max 60W |
Power input Pin |
1/2+?3/6- ?4/5+?7/8- |
Power output pin |
1-3 port( 1/2+?3/6- ) 4 port ( 1/2+?3/6- ?4/5+?7/8-) |
Whole Power |
≤90W |
POE Protocol |
IEEE 802.3af/at/bt |
Power Distance |
≤100m |
Network Standard |
IEEE802.3,IEEE802.3u,IEEE802.3x |
Network Medium |
10/100?1000BASE-TX:5 class and above non shielded twisted pair |
Data Distance |
≤100m |
Switch Capability |
10Gbps |
Forwarding Rate |
10BASE-tx:14880pps/port 100BASE-tx:14800pps/port 1000BASE-tx:148000pps/port
|
MAC Address |
MAC address table 1K |
Port Function |
Power priority mechanism, fast and forward, MAC automatic learning and aging IEEE802.3X Full-duplex and mode and backpressure for Half-duplex mode |
Working Environment |
Working temperature:-10°-- 55°C |
Weight |
160g±5% |
Size |
(Length)98mm*(Width)148mm*(High)34mm |
