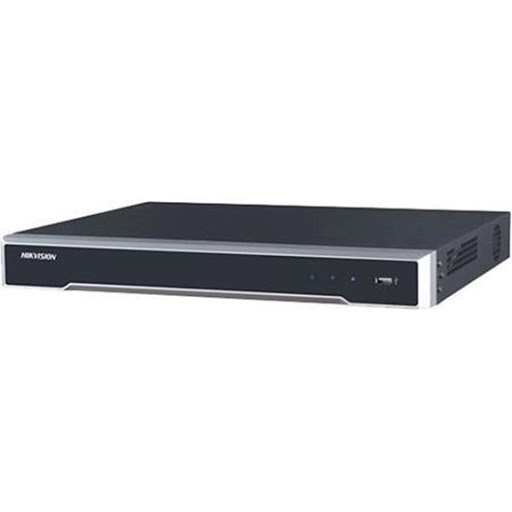

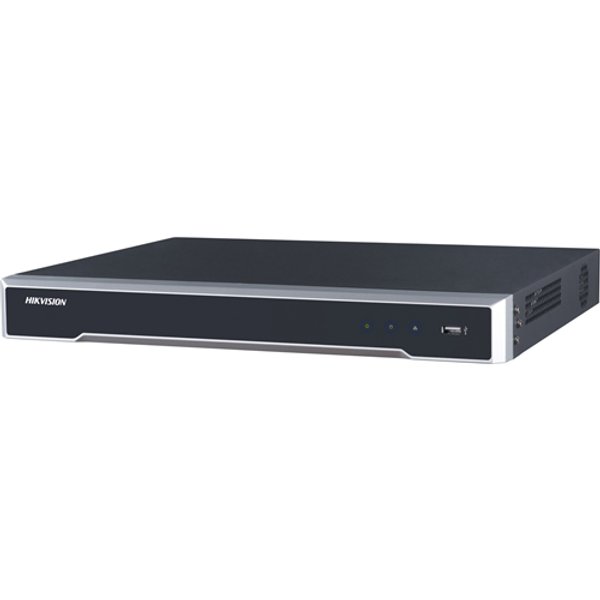

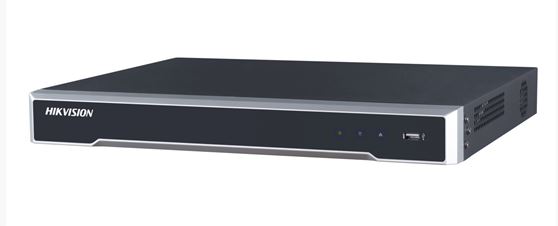

HIKVISION DS-7616NI-Q2,16Kanal,8mp,H265+,2 HDD,2160P Kayıt,160Mbps Bant Genişliği,Metal Kasa,NVR

Video / Ses Girişi
İki Yönlü ses girişi:
1-ch, RCA (2.0 Vp-p, 1kΩ)
IP Video girişi:
16-ch
IP Video girişi:
Up to 8 MP resolution
Network
Incoming bandwidth:
160Mbps
Outgoing bandwidth:
80Mbps
Video/Audio Output
HDMI Output:
1-ch, resolution:4K (3840 × 2160)/30Hz,1920 × 1080/60Hz, 1600 × 1200/60Hz, 1280 ×1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz.
Recording Resolution:
8MP/6MP/5MP/4MP/3MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF
Ses Çıkışı:
1-ch, RCA (Linear, 1kΩ)
Senkronize Yeniden Oynatma:
16-ch
VGA Çıkışı:
1-ch, resolution: 1920*1080P/60Hz, 1280*1024/60Hz, 1280*720/60Hz, 1024*768/60Hz
Decoding
Decoding format:
H.265/H.265+/H.264/H.264+/MPEG4
Live view / Playback:
8MP/6MP/5MP/3MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF
Capability:
1-ch @ 8 MP / 4-ch @ 1080p
Hard Disk
SATA:
2 SATA interfaces
Capacity:
Up to 6TB capacity for each disk
Capacity:
Up to 6TB capacity for each HDD
External Interface
Ağ Arayüzü:
1RJ-45 10/100/1000Mbps self-adaptive Ethernet interface
USB Arayüzü:
2, USB2.0
General
Power:
≤ 40W
Güç Kaynağı:
12 VDC
Tüketim (hard disk ve POE olmadan):
≤ 15W
Çalışma Sıcaklığı:
-10 oC ~ +55 oC (+14 oF~ + 131 oF)
Çalışma Nem oranı:
10 % ~ 90 %
Kasa:
1U chassis
Boyutlar:
385 × 315 × 52 mm (15.2"× 12.4" × 2.0")
Ağırlık (HDD hariç):
≤ 1.8 kg (4.0 lb)
