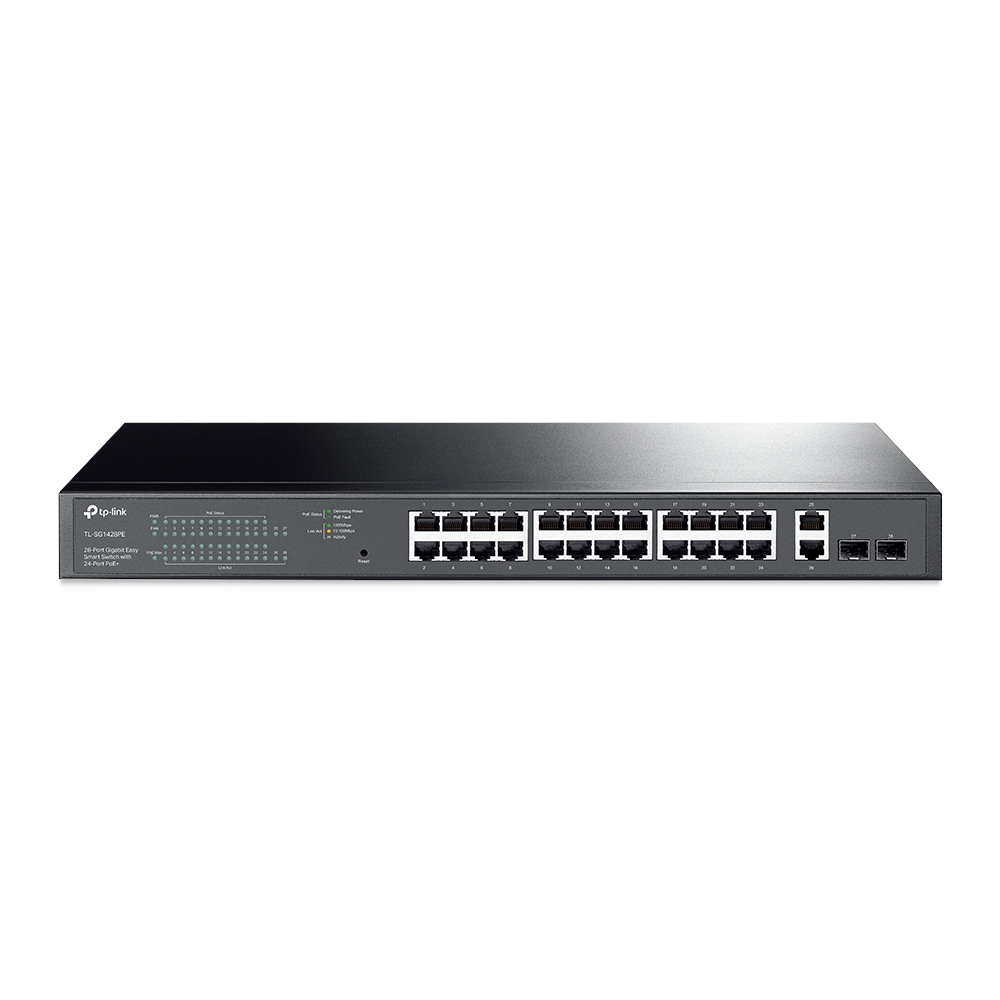

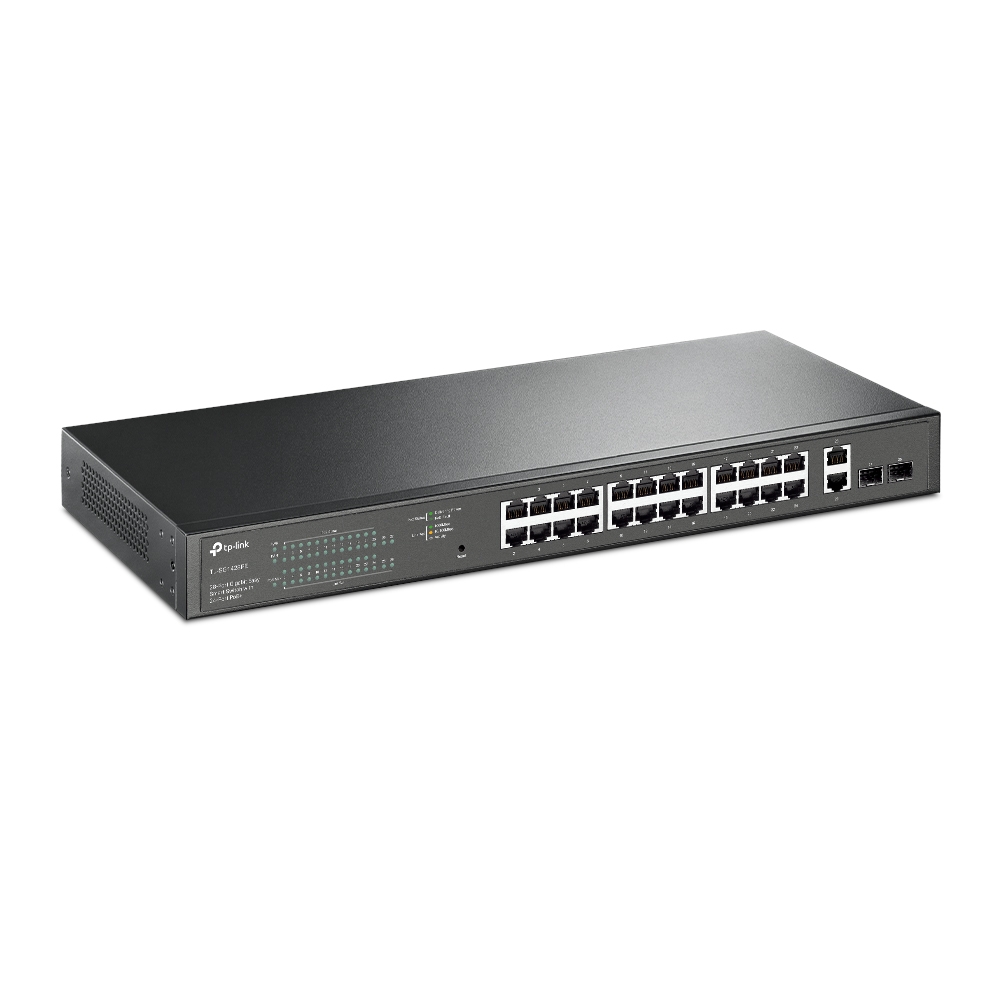

TP-LINK TL-SG1428PE 24 PORT GIGABIT + 2XGIGABIT RJ45/SFP+2 UPLINK YÖNETİLEBİLİR 250W POE RACKMOUNT SWITCH 24+2+2

DONANIM ÖZELLİKLERİ
Standartlar ve Protokoller    IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x
IEEE 802.3af, IEEE 802.3at, IEEE 802.1q, IEEE 802.1p
Arabirim    26 10/100/1000 Mbps RJ45 Ports
2 Gigabit SFP Ports
Ağ Medyası    10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
EIA/TIA-568 100Ω STP (maximum 100m)
100BASE-TX: UTP category 5, 5e cable (maximum 100m)
EIA/TIA-568 100Ω STP (maximum 100m)
1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m)
EIA/TIA-568 100Ω STP (maximum 100m)
1000BASE-X MMF, SMF
Fan Sayısı    2 Fans
Fiziksel Güvenlik Kilidi    Yes

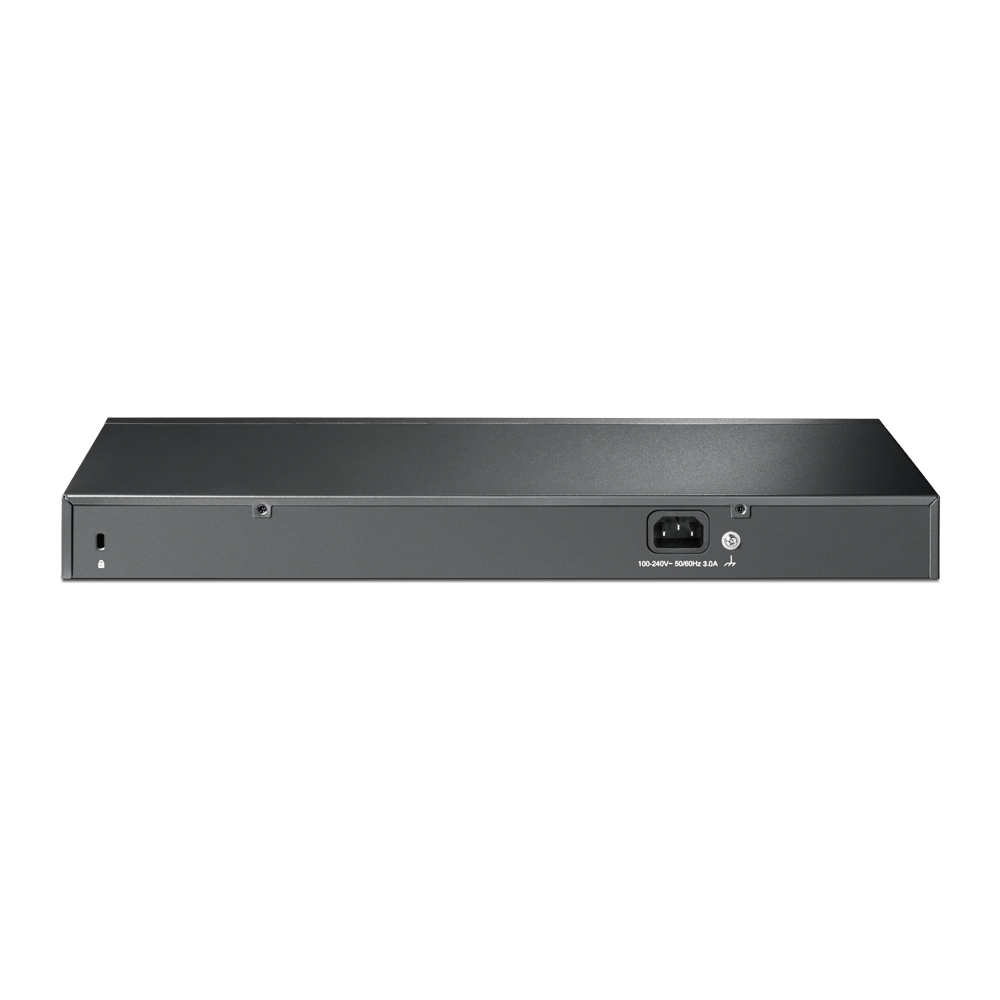

Güç Kaynağı    100-240V AC, 50/60 Hz

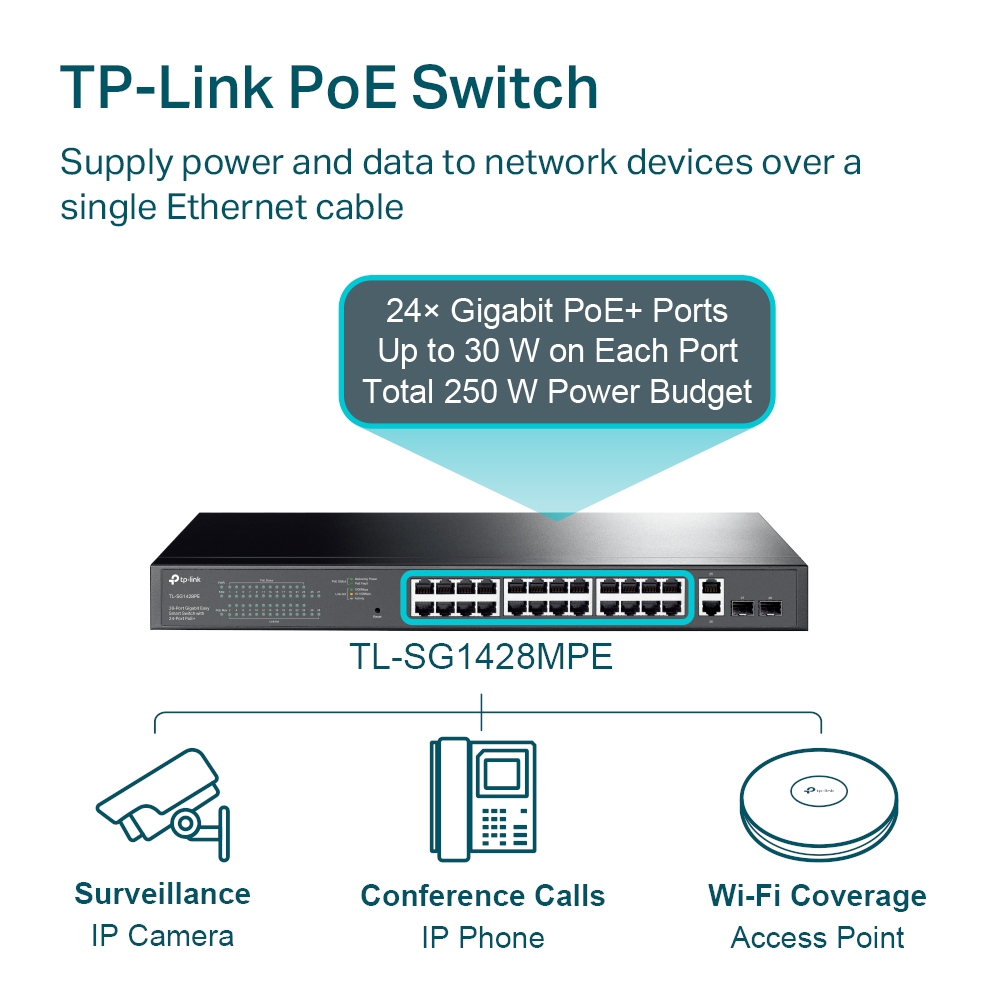

PoE+ Portları (RJ45)    Standard: 802.3at/802.3af compliant
PoE+ Ports: 24 Ports
Power Supply: 250 W
Boyutlar ( W X D X H )    17.3 × 8.7 × 1.73 in (440 × 220 × 44 mm)
Montaj    Rack Mountable
Maks. Güç Tüketimi    27 W (220/50Hz. no PD connected)
304.7 W (220/50Hz. with 250 W PD connected)
Max Heat Dissipation    92.07 BTU/h (no PD connected)
1039.03 BTU/h (with 250 W PD connected)
PERFORMANS
Anahtarlama Kapasitesi    56 Gbps
Paket Yönlendirme Hızı    41.7 Mbps
MAC Adres Tablosu    8K
Paket Buffer Belleği    4.1 Mbit
Jumbo Frame    9 KB
YAZILIM ÖZELLİKLERİ
Quality of Service    Support Port-based 802.1p/DSCP priority
Support 4 priority queues
Rate Limit
Storm Control
L2 Özellikleri    IGMP Snooping V1/V2/V3
Static Link Aggregation
Port Mirroring
Cable Diagnostics
Loop Prevention
PoE Auto Recovery
VLAN    Support up to 32 VLANs simultaneously (out of 4K VLAN IDs)
MTU/Port/Tag VLAN
Yönetim    Web-Based GUI
Easy Smart Configuration Utility
İletim Metodu    Store-And-Forward
DİĞERLERİ
Sertifika    CE, FCC, RoHS
Paket İçeriği    TL-SG1428PE
Power Cord
Installation Guide
Rackmount Kit
Rubber Feet
Ortam    Operating Temperature: 0°C~50°C (32°F~122°F)
Storage Temperature: -40°C~70°C (-40°F~158°F)
Operating Humidity: 10% ~ 90% non-condensing
Storage Humidity: 5%~90% non-condensing
